PRESS ROOM AUTOMATION PRODUCTS

Feeders

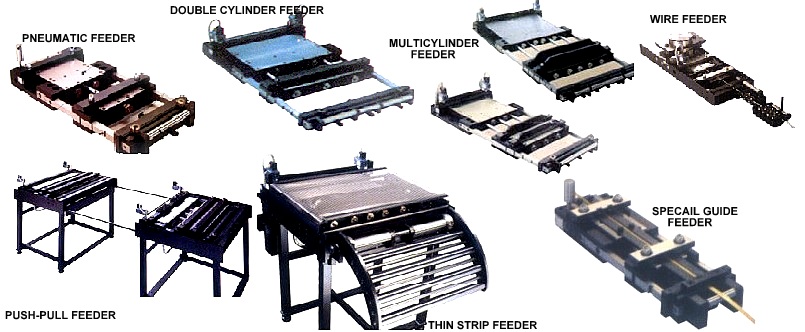

Pneumatic Feeders

Our high precision pneumatic feeder offers the most simplest feeding in the field of pneumatics. These are simple in use and also are maintenance free. Following are some of the features of our products :     Highly accuracy in tune of 50 microns     Easy installation one power press to another     Fit for any kind of working atmosphere     Low air consumption and minimum sound operation     Increase both productivity & quality

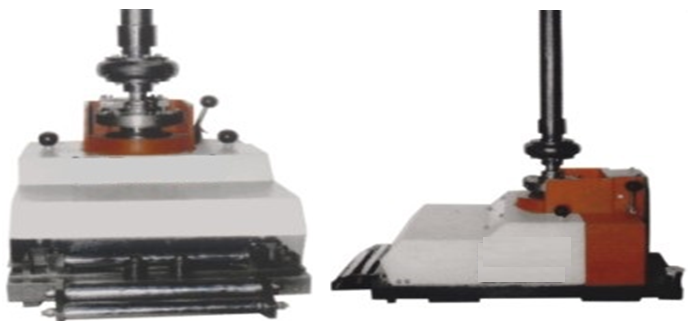

Gripper Feeders
		We offer mechanical gripper feeder for perfect solution of feeding strips on medium / high power possess. These have accurate and easy pitch adjustment where its accuracy in tune 0.20 mm is obtainable with piloting. Following are some of the features of our products :     All rotating parts are fitted with anti friction bearings to provide long life & reduce maintenance     The gripper are made out of carbide material long life     High speed up to 650 strokes / min     Roller cam for pilot release setting for precision adjustment of the fixed gripper     Silent & Trouble free operation     Micrometer pitch setting arrangement     Mechanically synchronization with the press avoiding feeding mismatch at high speed     Drive from the press crankshaft to the gripper is fitted with an overload safety coupling     Hardened gears providing in the right angle gear box for lon

Cam Actuated Feeders

Features :    Suitable for high accuracy with high speed    No manual adjustment of thickness required    Rollers are hardened & grinded low wear and highly precise    Trouble free operation, safe and stable

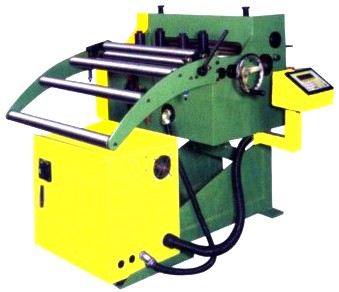

NC Servo Feeders

Features :    Best for coil of different materials    Efficient machine for electrical stampings, electronic appliances, vehicle components and other sheet metal components    Rollers are hardened & grinded low wear and highly precise    Trouble free operation, safe and stable Machine main specification :    Auto adjustment of Feeding height    Air expansion or Hydraulic expansion    Hard chrome plated rollers    Variable speed driving motor (A/C drive)    Pneumatic clutch for straightening unit    Speed of machine    Servo motor (NC) for auto feeding

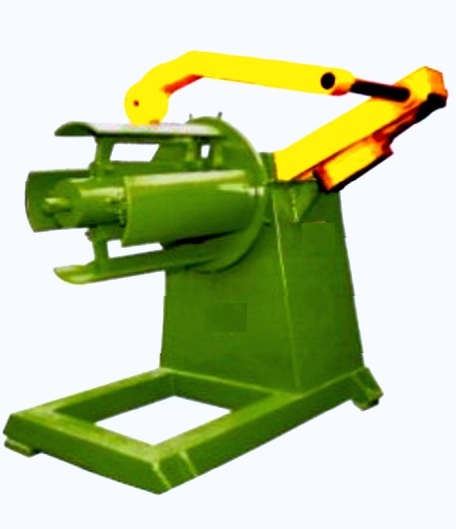

De-Coilers

We are provide a comprehensive range of decoilers and un-coilers. Fabricated as per set industrial standards, our range of available in both motorized and non-motorized form. Stringently checked on quality parameters, these are available in various capacities and specifications to meet variegated demands of clients

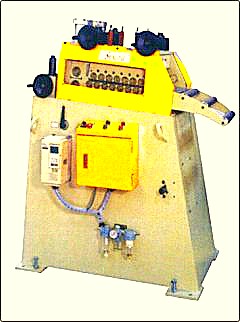

Straightners

Sheet straightners depending upon the material specifications and other requirement of our clients, we offer strip straightener. Through our technical department, we advice our clients on the right purchasing. Along with the versatile range of top quality precision strip straightener, pull through models are also available. These model are varies up to 1300 mm sheet width & 4.0mm sheet thickness. Straightener are used for straighting the materials like HR, SS, Copper, CRC, aluminum, brass sheets etc. Following are some of features of our products :

Features

   Durable

   Simple in use

   Maintenance free

   User-friendly

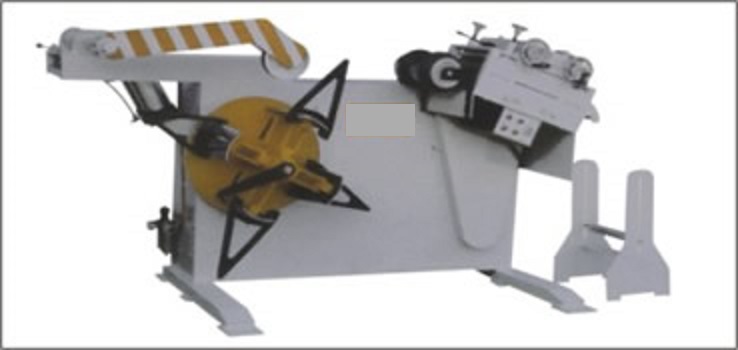

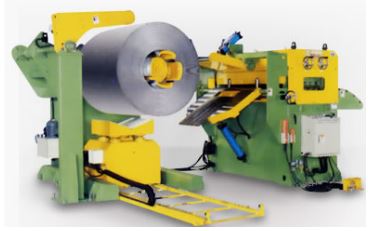

Combination Units

We are supply and export of super grade decoiler straightening machines, which have gained wide acceptance amidst our clients. These decoiler straightening machines are precision engineered using streamlined manufacturing processes. These decoiler cum straightening machines are available in following features:

   Superior performance

   Sturdy and durable construction

   Resistant to rust & corrosion

   Easy to operate

   Minimum maintenance

   User friendly

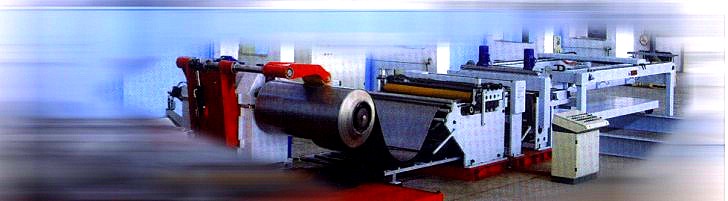

Cut-To-Length Lines

The cut to length lines automatically feeds & cuts to even or random as required lengths of sheets by power shear/ fly shear Using high precise straighteners. the machine has a single or double straightener as per requirement.

These are technically accurate machines that have been assessed on performance & consistency in output before releasing to market.

Features :

   Cut to length lines varied from 400 mm to 2500 mm width

   Coil thickness varies from 0.20 mm to 16 mm ( CRC, HR, CRNGO & S.S. Material)

   Weight of Coil varies from 3.0 ton to 30 tons

   Operation : Hydraulic Power and Pneumatic Clutch

   Construct : Made up of EN-31 material roller, hardened gears etc.

   Control Line : Electrical Stopper & Servo Motor based.

   Control Line Encoder : PLC Based

SPECIFICATIONS & FEATURES:

   We are manufacturing CTL Lines upto 400 - 3000 mm coil Width.

   Thickness of the Coil varies 0.20 - 20 mm of CRC, HR, Alluminioum & SS Material.

   Coil Weight varies 3.0 MT to 30 MT.

   Shearing machines are available both type. (Pneumatic clutch operated & Hydraulically operated).

   Straightener / Leveler machine rollers are made of Alloy Steels.

   Driven by gears or auxiliary gear box.

   Line speed upto 40 Meters per Minute.

   Mechanical stopper control line.

   Variable Speed of line - optional.

   Electrical Stopper Control line - Optional.

   Encoder with PLC Control base line - Optional.

   NC Servo Motor high speed control line - Optional.

   Back tray, motorised Conveyor or hydraulic Stacker - Optional.
